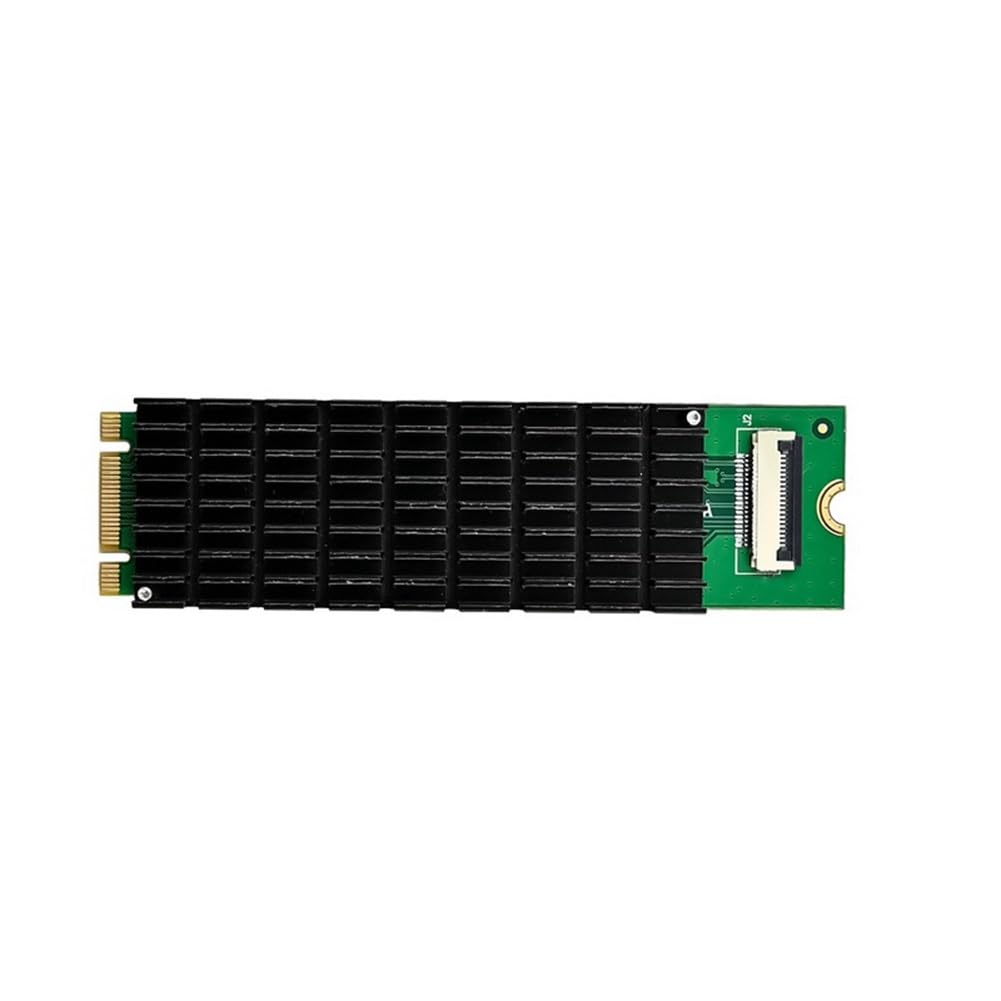

Rtauhife M.2 B+M Key AQC107 10GbE Single Port Network Card - Industrial Grade Server Ethernet Adapter for High-Speed Networking, Data Centers & Industrial Control Systems

Rtauhife On-chip high-resolution cable analyzer for advanced cable diagnosticsEnergy Efficient Ethernet (EEE) supportSupport IEEE1588v2 precision time protocolSupports large send offload, receiver scaling (RSS), direct cache access () and headersChecksumming improves network performance and reduces host CPU utilizationWake-on-LAN () power managementSupports IPv4, IPv6 and IPv6/UDP checksum offloadSupports jumbo frames (up to 16kbytes)Quality of Service ()Supports up to eight traffic classes and Data Center Bridging ()Chip processor:Marvell/AQC107Applicable network:10GbR server network cardMain controller:Marvell AQC107Bus type:M.2 B+M KEYMedia interface:1 x RJ45 copper cableTransmission rate:10G/5G/2.5G/1000/100MbpsNetwork topology:10GBASE-T / 5GBASE-T / 2.5GBASE-T / 1000BASE-T / 100BASE-TIEEE 802.3bz, IEEE 802.3, IEEE 802.3x, IEEE 1588, IEEE 802.3az-Energy Efficient Ethernet (EEE)Management functions:IPMI pass-through via SMBus or NC-SI, iSCSI boot, , PXE remote boot, VLAN filteringFirmware environment:Operating temperature:0 - 55°C (32 - 131°F)Storage temperature:-40 - 70 ℃ (-40 - 158 ℉)Storage humidity:90% non-condensing relative humidity at 35°CColour:GreenMaterial:PCBPackage Contents:1 x Network Card1 x CD1 x Short Iron PieceOnly the above package content, other products are not included.Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

Marvell AQC107 controller has Base-T copper network interface, supports 10GBASE-T/5GBASE-T/2.5GBASE-T/1000BASE-T /100BASE-T and PCIe Gen3x4 or Gen2x4, AQtion Ethernet controller can easily handle 10GbE lines speed performance.

M.2 B+M AQC107 10G embedded industrial-grade network adapter, using high-performance Marvell AQC107 Ethernet controller.

Designed for Any mobile device, desktop, workstation, value server or industrial design with space constraints. System Requirements- Win 7/ Win 8/Win 8.1/Win 10/Server 2012/ Server 2016 32 or 64bits, Linux Kernels3.10 and above, available M.2 B+M KEY slot.

The AQC107 incorporates Aquantia's AQrate PHY technology to deliver 10GbE networking speeds over Cat 6a and 5 GbE and 2.5 GbE networking speeds over 100 meters of Cat 5e or better cable, enabling higher data rates , with zero changes to conventional wiring.

Compliant with PCIE Express Revision 3.0 and downstream PCI Express Reivison2.0. Each line supports 8.0GT/s and 5.0GT/ speed. Support Gen3 x4 or Gen2 x4. Support communication and management functions. Integrated Aquantia AQrate PHY with NBASE-T Technology. Support PHY specification through 10GBASE-T /5GBASE-T /2.5GBASE-T /1000BASE-T /100BASE-T.
