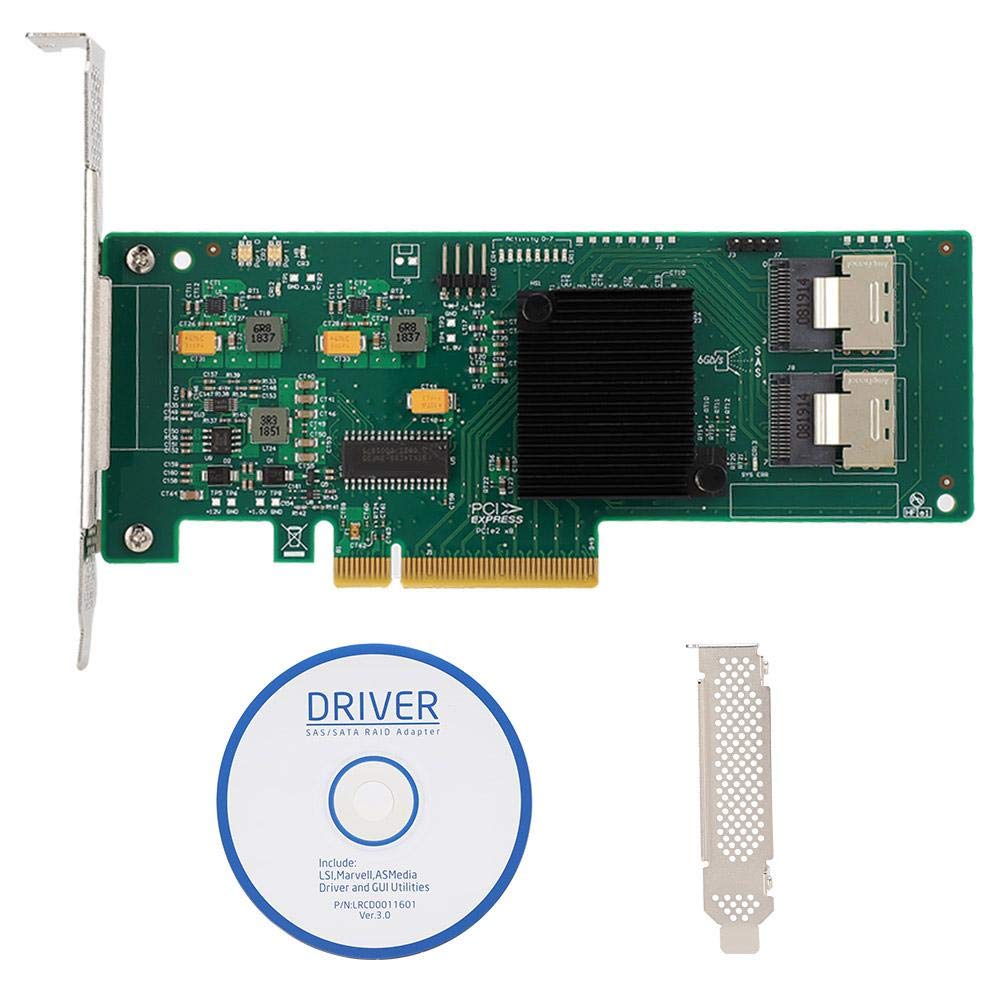

Features: 1. High Speed data transmission rate up to 6GB/S per port. 2. Equipped with two X4mini for SAS internal connectors (SFF8087). 3. Integrated LSI SAS2008 controller with support for RAID 0, 1, 1E and 10. 4. Support up to 256 for SAS or SATA endpoint devices. 5. Support power management, support hot spare parts, consistency check. 6. Support SSP, for SMP, STPt and SATA protocols. 7. The Fusion mpt architecture has more than 290,000 input/output per second. 8. Can be used as internal storage connection, 1U/2U rack server, mid to high end server, high performance workstation and Directly connect internal hard drives for SAS or SATA and solid state drives Specification: Model: 9211 8I Interface: 8 x PCI E Internal Connector: 2X4Mini SAS (SFF8087) Chip: LSI 2008 8I Transmission Rate: 6G/S Support for RAID: for RAID 0, 1, 1E, and 10. Maximum Number of Supported Hard Disks: 8 Applicable Type: Server Hard Disk Type: SATA Hard Disk / Hard Disk for SAS Package List: 1 x 9211 8I 1 x Half Height Baffle 1 x Drive Disc
