High-Speed M.2 B+M AQC107 Network Card for Industrial Control Servers - Reliable 10G Ethernet Adapter for Data Centers, Cloud Computing & Industrial Automation

Supports large shipment offload, receiver scaling (RSS), direct cache access (), and headers Checksum improves network performance and reduces host CPU utilization Wake-on-LAN Power Management () Supports IPv4, IPv6 and IPv6/UDP checksum offload Supports extended frames (up to 16 kbytes) Quality of Service () Supports up to eight traffic classes and Data Center Bridging () Applicable network: 10GbR server NIC Main controller: Marvell AQC107 Bus type: M.2 B+M KEY Multimedia Interface: 1 x RJ45 Copper Cable Transmission rate: 10G/5G/2.5G/1000/100Mbps Network topology: 10GBASE-T / 5GBASE-T / 2.5GBASE-T / 1000BASE-T / 100BASE-T IEEE 802.3bz, IEEE 802.3, IEEE 802.3x, IEEE 1588, IEEE 802.3az -Energy Efficient Ethernet (EEE) Management functions: IPMI pass-through via SMBus or NC-SI, iSCSI boot, PXE remote boot, VLAN filtering Firmware Environment: Operating temperature: 0 - 55 Celsius (32 - 131 °F) Storage temperature: -40 - 70 Celsius (-40 - 158 Fahrenheit) Storage Humidity: 90% RH non-condensing at 35 Celsius Colour: Green Material: PCB Package includes: 1 x Network Card 1 x CD 1 x short iron piece. Only the above package, other products are not included. Note: light reflection and different screens may cause the colour of the item to be slightly different from the real thing. The allowed measurement error is +/- 1-3 cm.

The AQC107 incorporates Aquantia's AQrate PHY technology to provide 10GbE network speeds over 6a and 5GbE and 2.5GbE network speeds over 100m of 5e or higher cable, allowing for higher data rates, without any change from conventional .

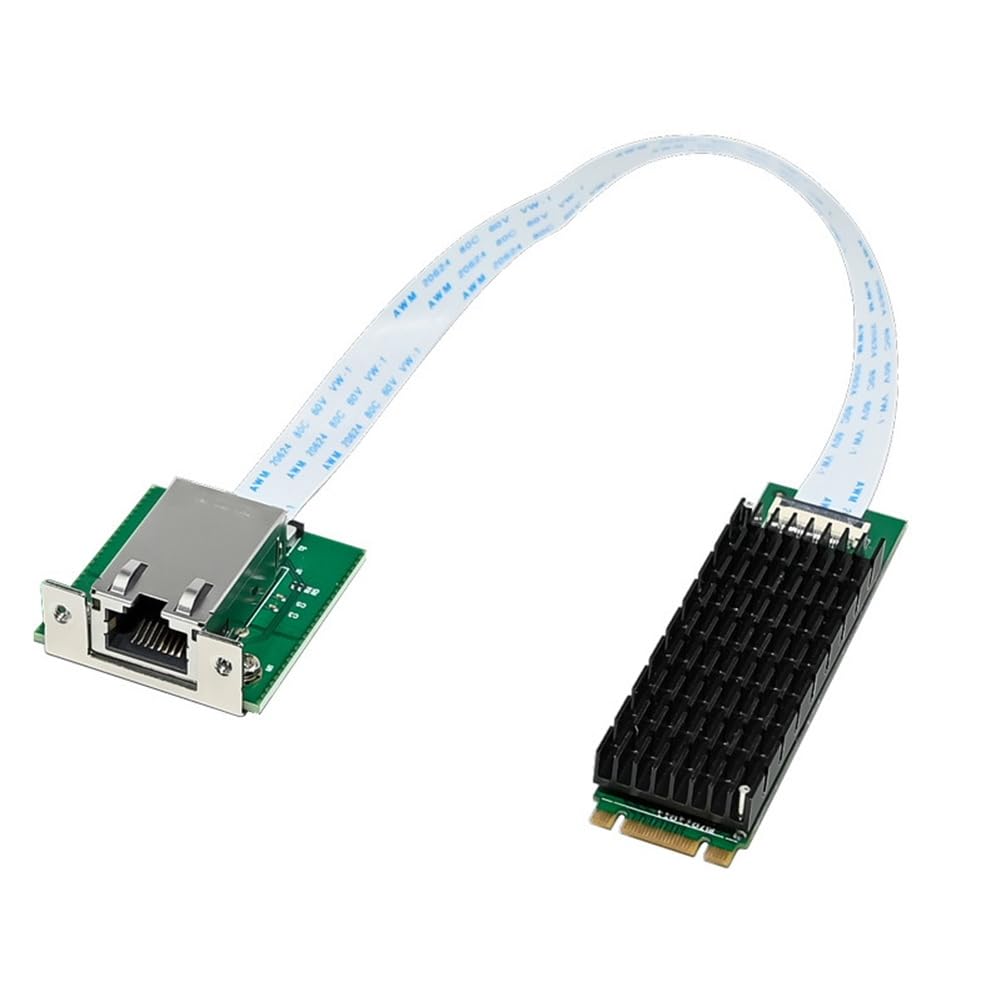

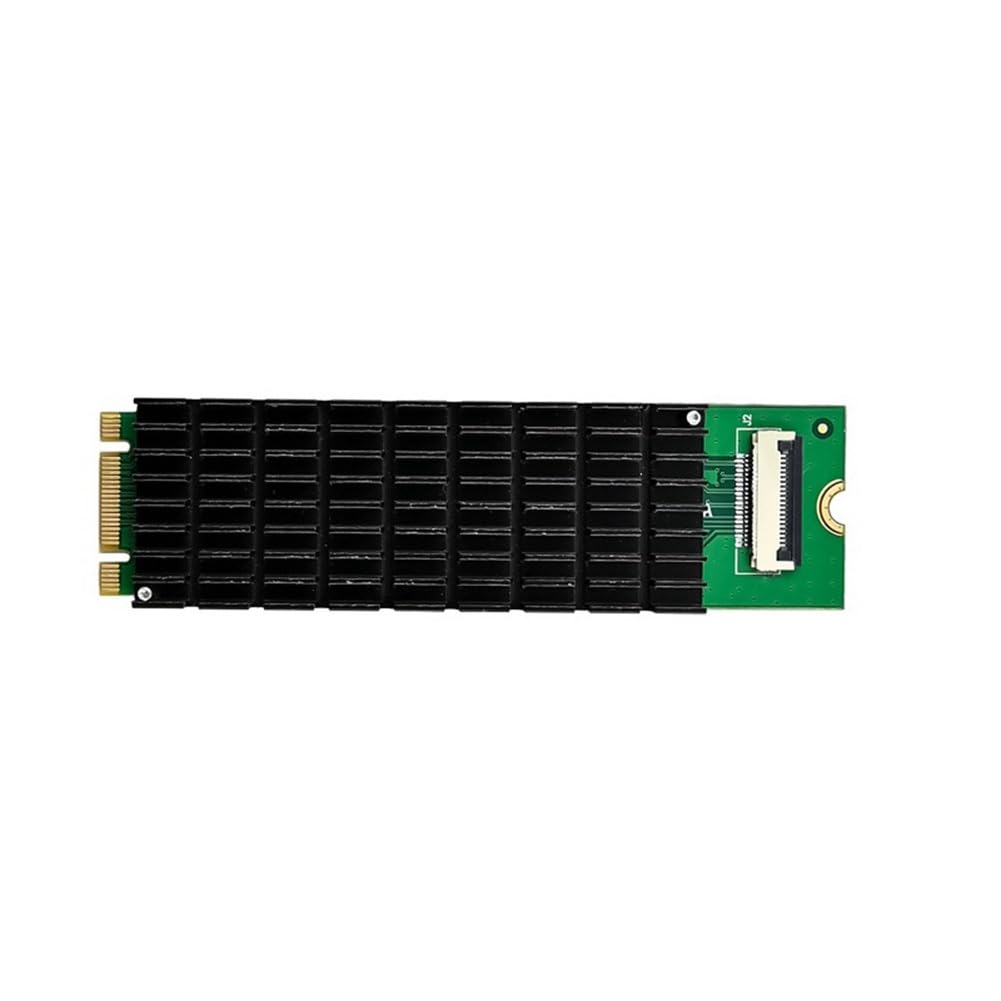

Integrated industrial grade M.2 B+M AQC107 10G network adapter, using the Marvell AQC107 high performance Ethernet controller.

Designed for Any mobile device, desktop, workstation, industrial value server with space constraints. System Requirements Win 7/ Win 8/ Win 8.1/ Win 10/ Server 2012/ Server 2016 32 or 64bits,Linux Kernels 3.10 and higher, M.2 B+M KEY slot available.Compatible with PCIE Express Revision 3.0 and PCI Express Reivison 2.0 downstream. Each line supports Line speed of 8.0 GT/s and 5.0 GT/s. Supports Gen3 x4 or Gen2 x4.

Marvell AQC107 controller has Base-T copper network interface, supports 10GBASE-T/5GBASE-T/2.5GBASE-T/1000BASE-T/100BASE-T and PCIe Gen3x4 or Gen2x4, AQtion Ethernet controller can easily handle 10GbE lines speed performance.

Support communication and management functions. Aquantia AQrate PHY integrated with NBASE-T technology. Supports PHY specification via 10GBASE-T /5GBASE-T /2.5GBASE-T /1000BASE-T /100BASE-T.On-chip high-resolution cable analyzer for advanced cable diagnostics.Support Energy Efficient Ethernet (EEE). Supports IEEE1588v2 precision time protocol.
