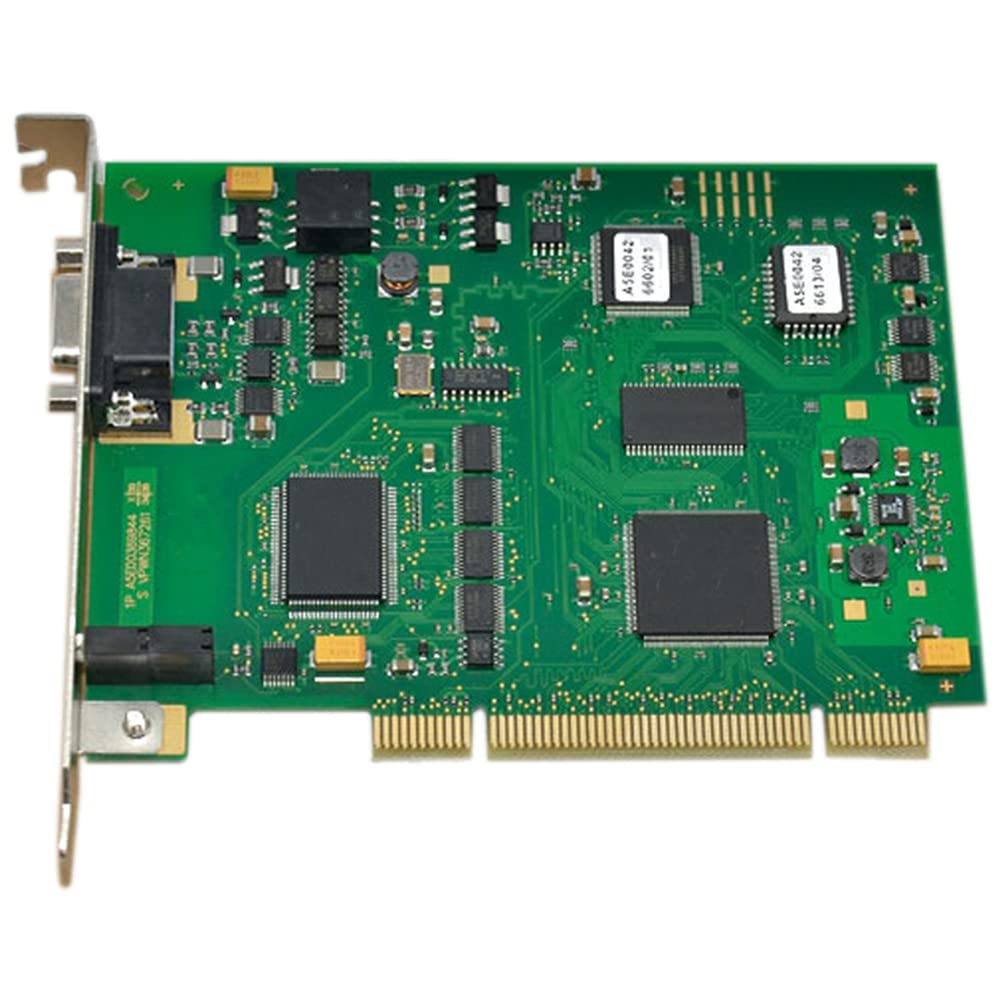

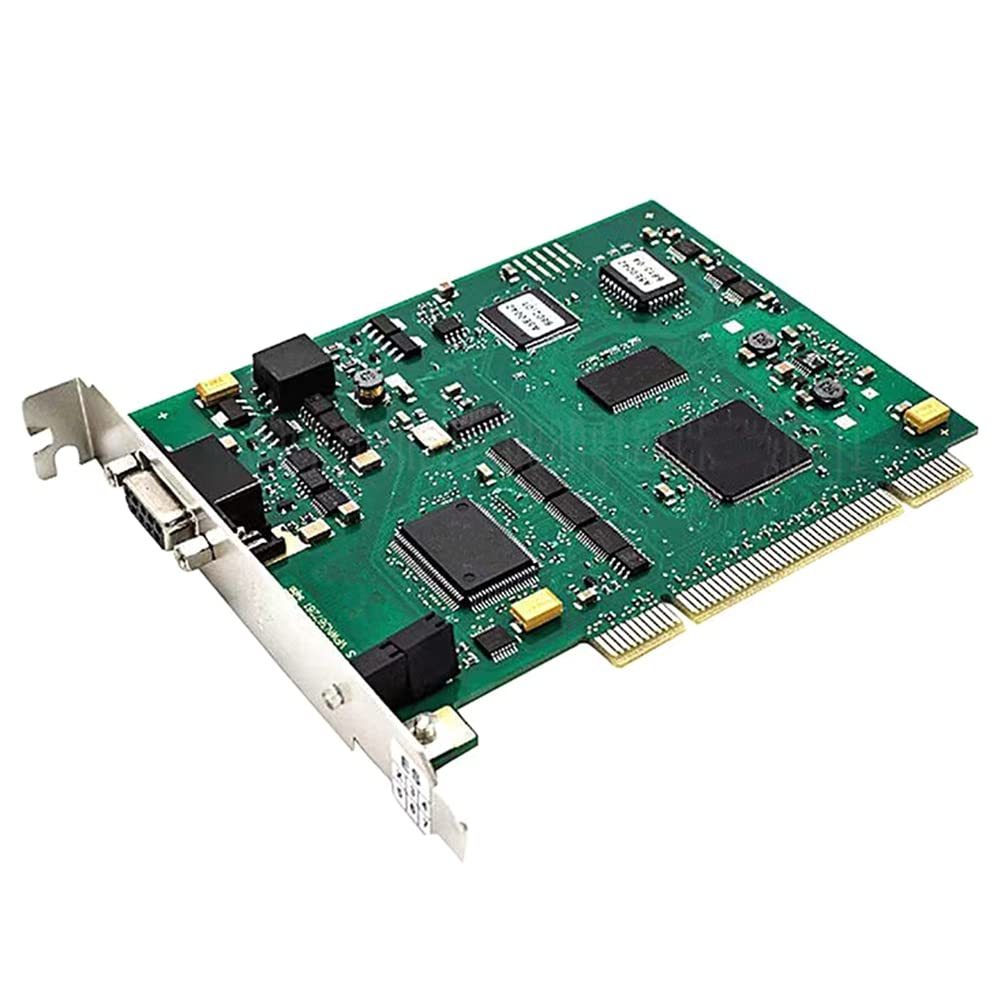

Zunedhys 1PC 6GK1561-1AA01 Profibus/MPI PCI Network Card - CP5611 A2 Communication Processor for Industrial Automation & PLC Systems | Perfect for Factory Automation, Process Control & Machine Networking

Zunedhys Model: 6GK1561-1AA01 (01 card)Full set: CP5611 card + packing boxIsolation voltage: 1000VDCThe RS485 port is equipped with a Fast Chargin surge protector. Repeatable surge capacity: Ipp=100A (10/700us, 4KV)Compliance standards: ITU-TK20/21, VDE 0433. ±15KV ESD (electrostatic) protectionSelf-recovery overcurrent protection: RS485 port can withstand continuous overcurrent caused by voltage up to 60VConnect PG/PC: PCI2.1 standard slotStandard voltage: +5VDCPower Consumption: 2.0WInstallation and uninstallation of CP5611 card:Before installing the CP5611 card, software such as STEP7 or STEP7 MicroWIN needs to be installed, because the driver of the CP5611 card is integrated in the software.Check the gold finger part of the CP5611 card. It should be shiny and not oxidized. If there is oxidation, wipe it with toilet paper dipped in alcohol until the gold finger shines. closureAfter connecting to the computer, insert the CP5611 card into any PCI slot, and then tighten the fixing screws.Turn on the computer again, and the CP5611 card will be found automatically after the starts.Material: Plasticcolour: greenPackage Contents:1 x CP5611 cardOnly the above package content, other products are not included.Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

Before installing the CP5611 card, software such as STEP7 or STEP7 MicroWIN needs to be installed, because the driver of the CP5611 card is integrated in the software. Check that the gold finger of the CP5611 card should be bright and free of oxidation. If there is oxidation, wipe it with toilet paper dipped in alcohol until the gold finger shines.

After shutting down the computer, insert the CP5611 card into any PCI slot, and tighten the fixing screws. Turn on the computer again, and the CP5611 card will be found automatically after the starts

Transmission rate 9.6Kbps~12Mbps, corresponding communication distance complies with PROFIBUS standard

Interface connect to PROFIBUS/MPI/, isolated 9-pin Sub-D connector
